RCLS-08-LED
LED tshav dav hlau Runway Centerline Teeb
Ua raws li Cov Qauv
CAAC: AC-137-CA-2015-01
CAAC: AC-137-CA-2015-03
SAC: GB / T 7256
ICAO: Annex 14, Volume I
IEC: TS 61827
FAA: AC 150/5345-46 FAA: EB NO.67
NATO: STANAG 3316
Daim Ntawv Thov / Siv
Tshav dav hlau Runway
centerline teeb
Nta
LED tshav dav hlau runway centerline teeb yog featured los ntawm lub neej ntev, zoo zog txuag, txij nkawm
-dawb, uas coj cov txiaj ntsig kev lag luam loj
Proprietary prism structural tsim thiab tsim cov txheej txheem los xyuas kom meej qhov zoo tshaj plaws kev ua tau zoo
Kev tswj hwm xim LED nruj kom paub meej xim xim zoo ib yam
Raws li qhov dimming nkhaus nrog halogen teeb fixture, ua raws li FAA cov qauv
Muaj tswv yim tsav tsheb Circuit Court thiab thermal tswj kev daws teeb meem, uas zoo heev txhim kho kev ntseeg tau thiab kev pab lub neej ntawm lub teeb fixture
Lub zog qhov tseem ceeb saum toj no 0.9, txo qis kev cuam tshuam ntawm lub zog hluav taws xob
Kev xaiv muaj nuj nqi ntawm ib lub teeb tsis pom kev, uas ua rau lub teeb qhib li halogen teeb ib zaug LED tsis ua haujlwm
Cov qauv tsim tshwj xeeb, protruding tsuas yog 6.35mm saum toj kawg nkaus qib
Sab saum toj npog nrog lub teeb tawm sab nraud kom tsis txhob muaj dej tsim thiab ua kom muaj kev ua haujlwm siab luminous
Sab saum toj npog nrog sib npaug-lub zog tsim thiab forging khoom siv tes ua, uas muaj cov neeg kho tshuab hwm zoo, muaj peev xwm thaiv, thiab muaj peev xwm poob siab
Smooth sab sauv npog tsis muaj ntug ntse kom tiv thaiv cov log tsheb los ntawm kev puas tsuaj
Lub cev tseem ceeb ntawm lub teeb pom kev zoo yog ua los ntawm cov thermal conductive aluminium alloy, uas ua kom cov cua sov ua haujlwm zoo.
Lub ntsiab qauv ua los ntawm corrosion-resistant aluminium alloy nrog tshwj xeeb anodizing kev kho mob, tag nrho cov fasteners yog ua los ntawm stainless hlau, haum rau hnyav ib puag ncig daim ntawv thov
High-precision qhov chaw machining los xyuas kom meej tag nrho cov seem zoo thiab precision
IP68 Ingress tiv thaiv-qib, uas tuaj yeem tiv taus sab hauv siab txog li 138kpa lossis dej siab tsim los ntawm cov dav hlau 'kev cuam tshuam ntawm lub qhov rais kho qhov muag
Optional dual plug uas tso cai rau ob tog tswj ntawm ob txoj kev teeb thiab ntse voj tswj
Hloov pauv tau, cov qauv tsim qauv, muaj feem xyuam rau txhua qhov ntawm 8-inch LED hauv-pavement runway lights (6 mm), uas txo cov khoom muag zoo.

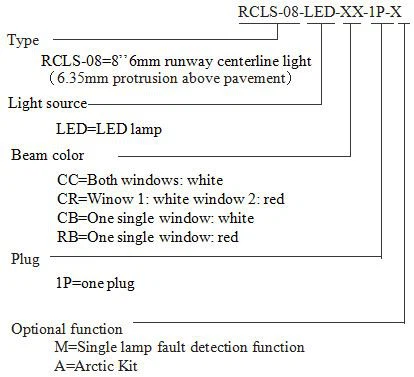

Ordering Information
Thov muab cov ncauj lus kom ntxaws txog kev teeb tsa thaum xaj, cov khoom seem thiab cov khoom siv yuav tsum tau txiav txim siab nrog cov lus txiav txim tshwj xeeb.
Kev teeb tsa
| Daim duab 1 Ntawm 8 "dawb hauv paus |  |
| Fig 2. Ntawm 12 "dav ntiav w/ 12"/8" adapter nplhaib |  |
| Fig 3. Nyob rau 12 "dav puag w/ 12"/8" adapter nplhaib |  |
Thov nrhiav cov ncauj lus kom ntxaws hauv phau ntawv qhia kev teeb tsa
Qauv
1. sab sauv 2. thermal hloov 3. lub tes tsho prism gasket 4. prism 5. LED teeb assy 6. prism gasket 7. prism nias bracket 8. lub teeb lub cev gasket 9. teeb pom kev zoo gasket 10.in cover assy |  |
Specifications
Lub hwj chim: 24VA (bi-directional) 18VA (uni-directional)
Lub zog Factor: Ntau dua lossis sib npaug rau 0.9
Cov ntaub ntawv Photometric
RCLS-08-LED (White), ICAO Figure A2-7, FAA L-850A
RCLS-08-LED (Red), ICAO Figure A2-7, FAA L-850A
Daim ntawv thov | Main Beam | Xim | Yuav tsum tau | Qhov tseeb | ||
H | V | |||||
RCLS -0 8-LED | ICAO | ± 5 degree | 0 degree — 9 degree / | Dawb | 5000 | 7184 |
Liab | 750 | 1598 | ||||
ICAO | ± 5 degree | 0 degree — 7 degree | Dawb | 5000 | 7381 | |
Liab | 750 | 1567 | ||||
Cov ntaub ntawv ntim
1 teeb w/o puag | Ntim qhov loj: 210 × 210 × 130mm³ |
Net nyhav: 3.4 kg | Qhov hnyav tag nrho: 3.5 kg |
1 lub teeb w / 8 '' ntiav puag | Ntim loj: 240 × 240 × 180mm³ |
Net nyhav: 6.4 kg | Qhov hnyav tag nrho: 6.5 kg |
Khoom seem
Struc No | Lub Npe | Order No. | Kev piav qhia |
1 | prism gasket lub tes tsho | 43117 | prism gasket lub tes tsho (61 × 28)-H6 |
2 | prism | 31158 | prism (61 × 28) - H6 |
3 | LED teeb pom kev zoo | 932053 -RCLS-C | LED teeb pom kev zoo-RCLS-C |
932053 -RCLS-C | LED teeb assy-ENDS-R | ||
4 | prism gasket | 43316 | prism gasket (67 × 21) |
5 | prism nias bracke | t 43241 | prism nias bracket (71 × 65) |
6 | lub teeb lub cev gasket | 41141 | O-ring 137 × 2 |
7 | lub teeb fixture gasket | 41107 | Sealing siv (tus qauv) |
Khoom siv
Tsis muaj. | Order No. | Kev piav qhia |
1 | SB-08 | 8 '' puag ncig |
2 | SB-12 | 12 '' qhov tob tob |
3 | IB -12 | 12 '' tob puag |
4 | AR-12/08 | 12''-8'' adapter nplhaib |
5 | 951101 | 8 '' teeb kov |
6 | ITF-065-066 | 65-watt rho tawm transformer |
7 | ITF-150-066 | 150-watt rho tawm transformer |
8 | REC 7 | molded hom thib ob |
